PhotoRedOx Box



Description:

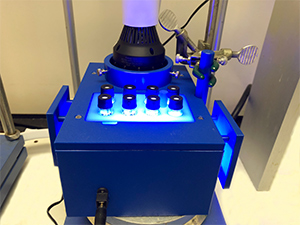

The EvoluChem™ PhotoRedOx Box device is designed to facilitate photochemical experiment. This device is compatible with most vial formats (0.3 ml, 2 ml, 4 ml and 20 ml vials). Its compact design allows for use with any stirring plate. A built-in fan keeps the reaction conditions at room temperature. (Patent Pending)

Features
Device with blue light source
HCK1006-01-016
(Patent Pending)HCK1006-01-016
  • Light source (kessil blue 34W), other sources can be adapted
  • Photochemistry chamber to evenly distribute light
  • Flexible format vials
  • Magnetic stirring on standard heat/stirring plate
  • Cooling by fan to maintain experiment at room temperature
  • Pre-designed array of catalysts and reagents available
Benefits
  • Easy setup on a standard stirring plate
  • Perform up to 32 reaction conditions simultaneously
  • Individually sealed vials enable flexible study design
  • Save your substrate using low scale reaction conditions
  • Save time on optimization



Easy setup and compact design

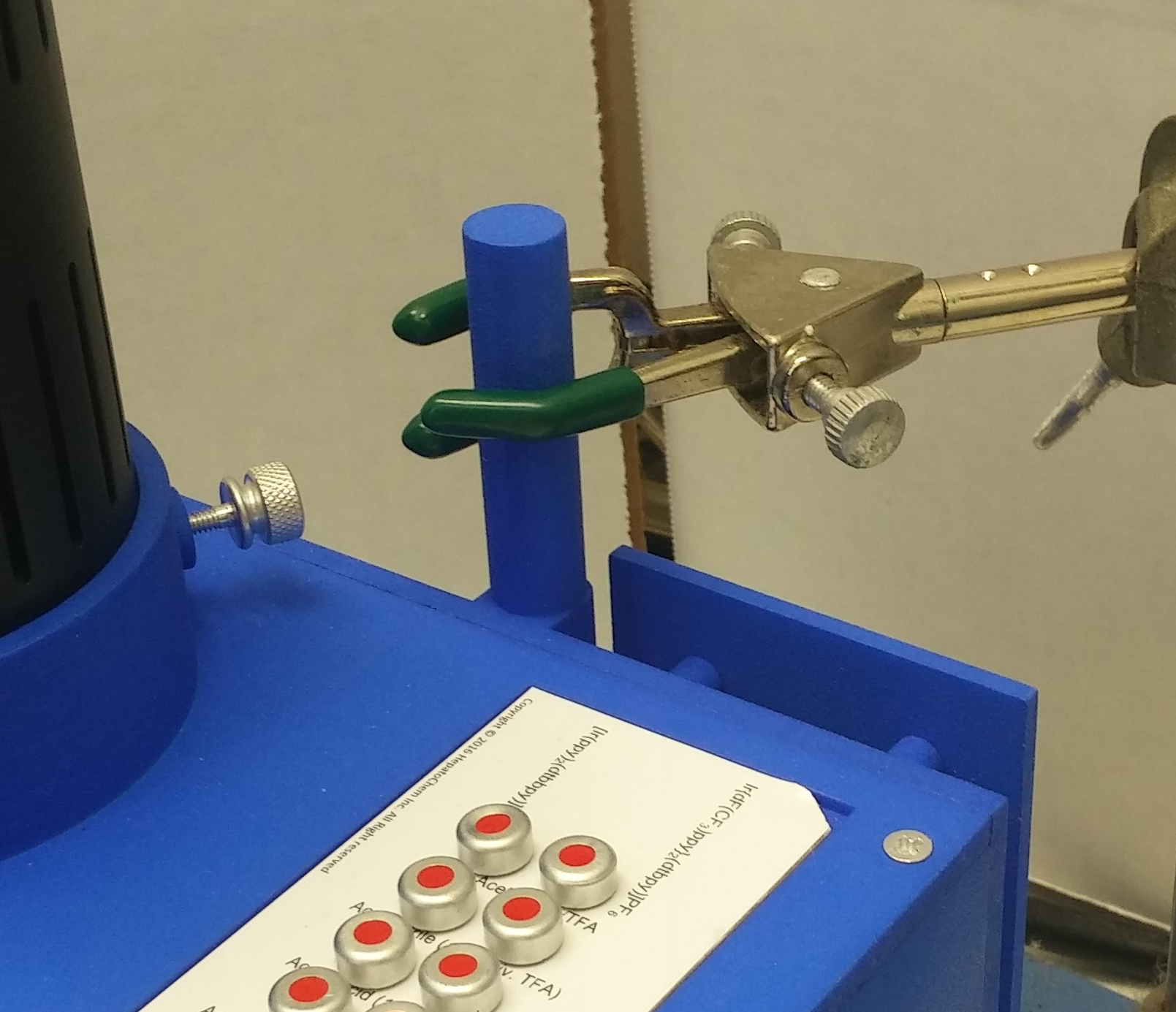

Handle to secure device
on a stirring plate

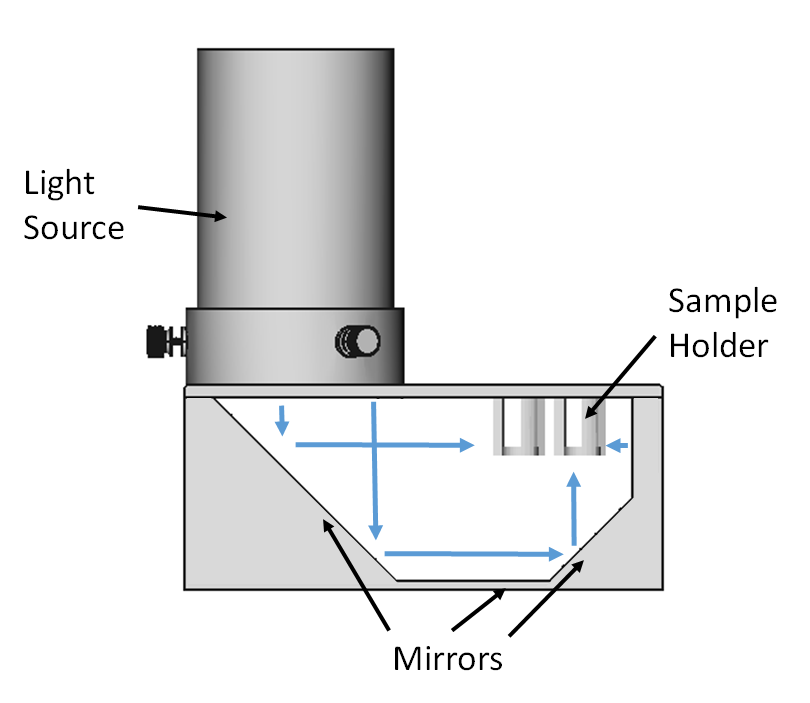

Unique geometry to focus
light on samples

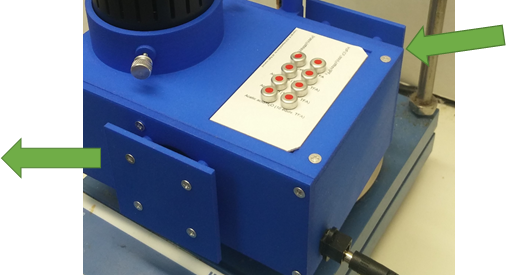

Air flow to maintain
samples at room temperature
device_handle light_mirrors air_flow_device
Fit multiple vial sizes

Several holders are available that fit different sizes of vials.

HCK1006-01-017
HCK1006-01-018
HCK1006-01-019
HCK1006-01-020
HCK1006-01-021
32 X 0.3 ml vials

HCK1006-01-017

8 X 2 ml vials

HCK1006-01-018

8 X 4 ml vials

HCK1006-01-019

8 X 8 ml vials

HCK1006-01-020

2 X 20 ml vials

HCK1006-01-021
